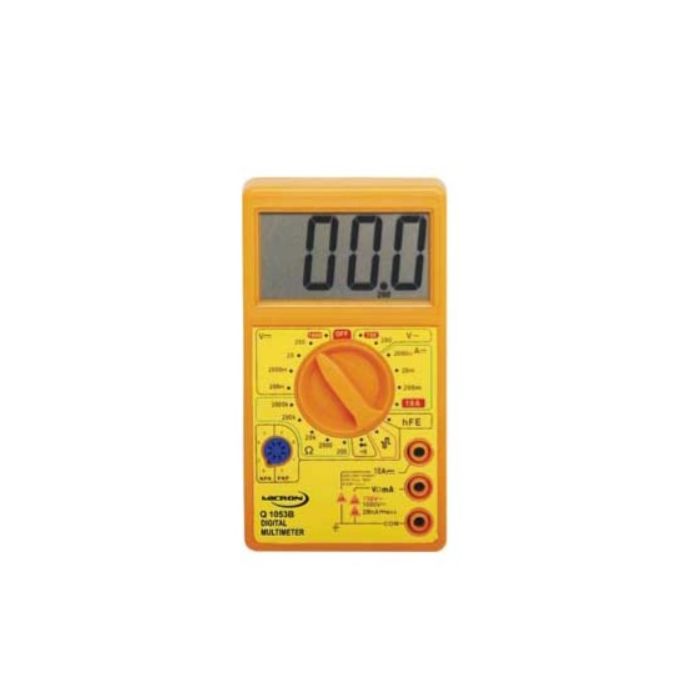

Ideal for students or budding enthusiasts, this meter offers quality and features found in much more expensive models but at the fraction of the price.

Featuring 19 ranges, square wave output, continuity buzzer, in-built hFE transistor and diode test function. Perfect as a spare meter for the toolbox or work van. Supplied with test leads.

Features

• Low battery indicator
• Jumbo display
• Continuity buzzer
• Square wave output
• Transistor tester
• Current measurement
• Voltage measurement
• Diode tester
• Battery included
• Cat II 500V

Specifications

• Display: 3.5 digit LCD, 1999 count
• Voltage DC: 200mV, 2V, 20V, 200V, 1000V (±0.5%+4d)
• Voltage AC: 200V, 750V (±1.2%+10d)
• Current DC: 2000μA, 20mA, 200mA, 10A (±2%+2d)
• Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ (±1%+8d)
• Diode test: Included
• Continuity test: Audible buzzer
• Transistor test: Measures hFE, NPN/PNP identification
• Display: 3.5 digit LCD, 1999 count
• Protection: 500mA M205 fused on all inputs, except 10A range

In full, this product contains:

• 1x Digital Multimeter

Dimensions:

• 125mm H x 68mm W x 24mm D
